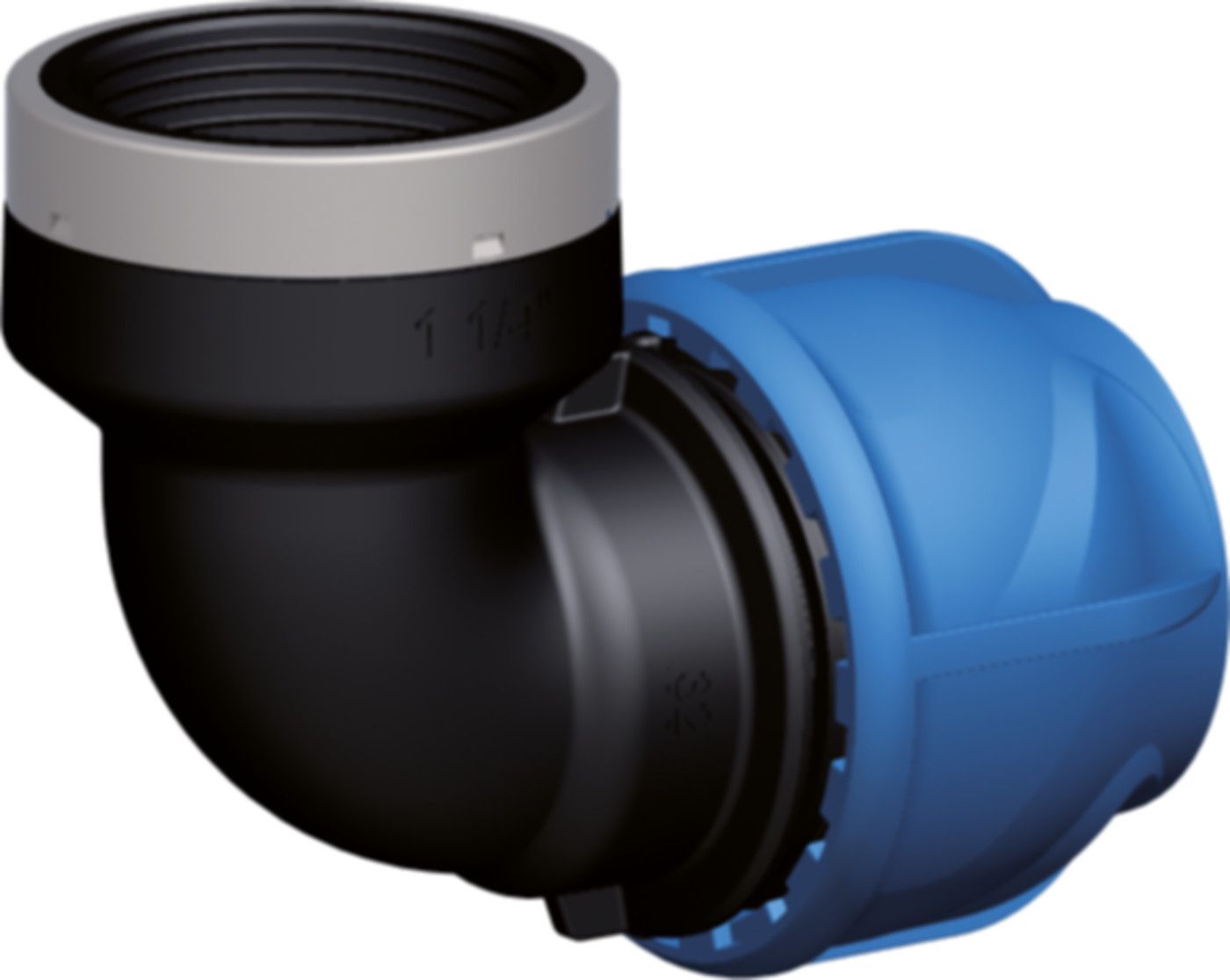

Name: Übergangswinkel 90°, IG - iJOINT
Brand: +GF+ iJOINT
SKU: IJUW90IG
Price: 11.66 CHF

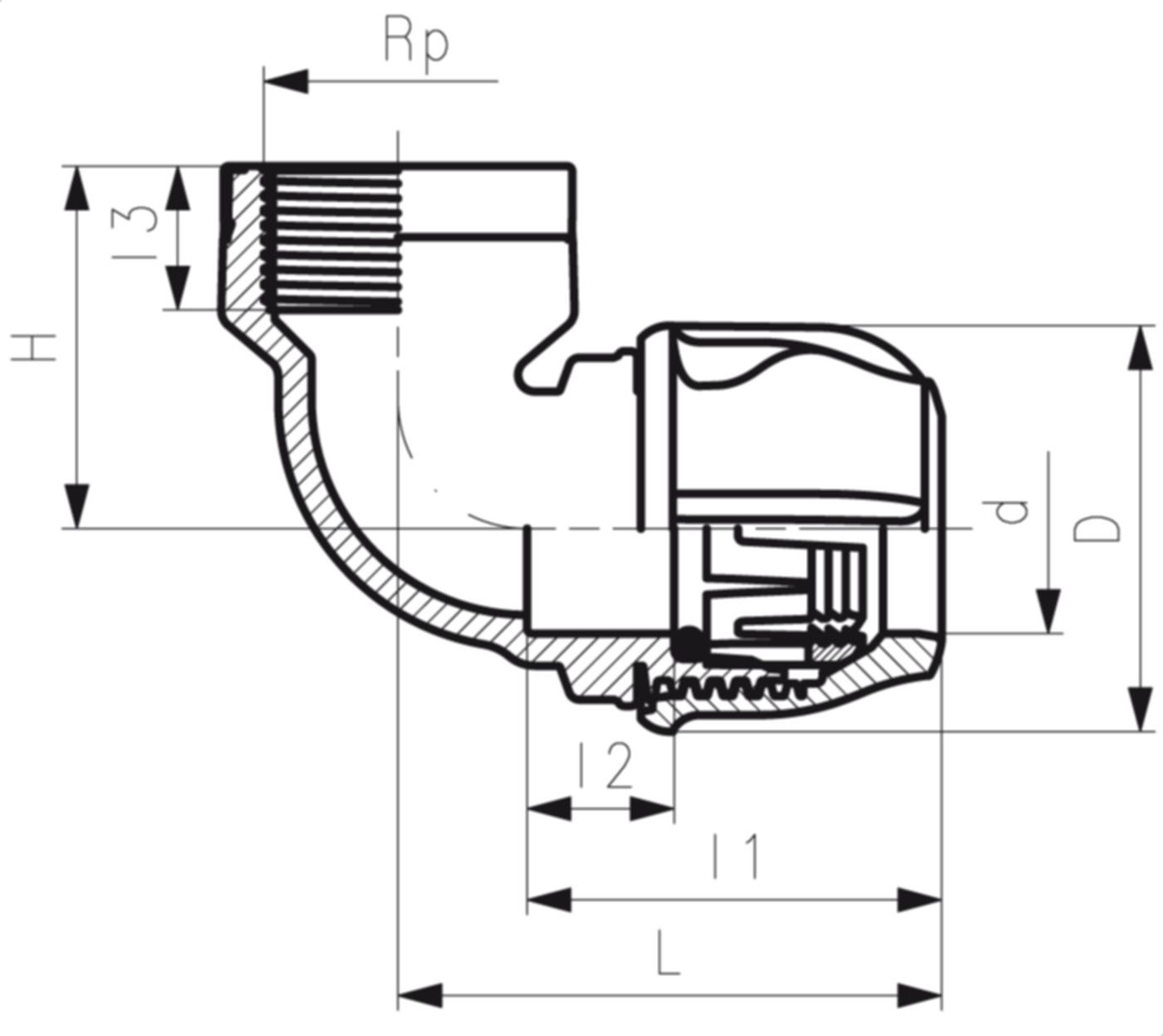

l2 [mm]: 19

PN [bar]: 16

d [mm]: 20

D [mm]: 45

L [mm]: 67

Winkel [°]: 90

l1 [mm]: 54

NPK-Nr.: --

H [mm]: 40

l3 [mm]: 15

IG (Rp) [Zoll]: 1/2

Ø d [mm]: 20

Winkel [°]: 90

IG [Zoll]: 1/2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d20-1/2"

N° d'article

158400022

l2 [mm]: 19

PN [bar]: 16

d [mm]: 20

D [mm]: 45

L [mm]: 67

Winkel [°]: 90

l1 [mm]: 54

NPK-Nr.: 431.262

H [mm]: 40

l3 [mm]: 16

IG (Rp) [Zoll]: 3/4

Ø d [mm]: 20

Winkel [°]: 90

IG [Zoll]: 3/4

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d20-3/4"

N° d'article

158400023

l2 [mm]: 21

PN [bar]: 16

d [mm]: 25

D [mm]: 53

L [mm]: 75

Winkel [°]: 90

l1 [mm]: 59

NPK-Nr.: --

H [mm]: 40

l3 [mm]: 15

IG (Rp) [Zoll]: 1/2

Ø d [mm]: 25

Winkel [°]: 90

IG [Zoll]: 1/2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d25-1/2"

N° d'article

158400024

l2 [mm]: 21

PN [bar]: 16

d [mm]: 25

D [mm]: 53

L [mm]: 75

Winkel [°]: 90

l1 [mm]: 59

NPK-Nr.: --

H [mm]: 44

l3 [mm]: 16

IG (Rp) [Zoll]: 3/4

Ø d [mm]: 25

Winkel [°]: 90

IG [Zoll]: 3/4

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d25-3/4"

N° d'article

158400025

l2 [mm]: 21

PN [bar]: 16

d [mm]: 25

D [mm]: 53

L [mm]: 75

Winkel [°]: 90

l1 [mm]: 59

NPK-Nr.: 431.263

H [mm]: 49

l3 [mm]: 20

IG (Rp) [Zoll]: 1

Ø d [mm]: 25

Winkel [°]: 90

IG [Zoll]: 1

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d25-1"

N° d'article

158400026

l2 [mm]: 23

PN [bar]: 16

d [mm]: 32

D [mm]: 64

L [mm]: 87

Winkel [°]: 90

l1 [mm]: 66

NPK-Nr.: --

H [mm]: 43

l3 [mm]: 15

IG (Rp) [Zoll]: 1/2

Ø d [mm]: 32

Winkel [°]: 90

IG [Zoll]: 1/2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d32-1/2"

N° d'article

158400027

l2 [mm]: 23

PN [bar]: 16

d [mm]: 32

D [mm]: 64

L [mm]: 87

Winkel [°]: 90

l1 [mm]: 66

NPK-Nr.: --

H [mm]: 46

l3 [mm]: 16

IG (Rp) [Zoll]: 3/4

Ø d [mm]: 32

Winkel [°]: 90

IG [Zoll]: 3/4

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d32-3/4"

N° d'article

158400028

l2 [mm]: 23

PN [bar]: 16

d [mm]: 32

D [mm]: 64

L [mm]: 87

Winkel [°]: 90

l1 [mm]: 66

NPK-Nr.: 445.211

H [mm]: 54

l3 [mm]: 20

IG (Rp) [Zoll]: 1

Ø d [mm]: 32

Winkel [°]: 90

IG [Zoll]: 1

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d32-1"

N° d'article

158400029

l2 [mm]: 23

PN [bar]: 16

d [mm]: 32

D [mm]: 64

L [mm]: 87

Winkel [°]: 90

l1 [mm]: 66

NPK-Nr.: 445.221

H [mm]: 57

l3 [mm]: 22

IG (Rp) [Zoll]: 1 1/4

Ø d [mm]: 32

Winkel [°]: 90

IG [Zoll]: 1 1/4

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d32-11/4"

N° d'article

158400030

l2 [mm]: 26

PN [bar]: 16

d [mm]: 40

D [mm]: 75

L [mm]: 102

Winkel [°]: 90

l1 [mm]: 76

NPK-Nr.: --

H [mm]: 49

l3 [mm]: 16

IG (Rp) [Zoll]: 3/4

Ø d [mm]: 40

Winkel [°]: 90

IG [Zoll]: 3/4

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d40-3/4"

N° d'article

158400031

l2 [mm]: 26

PN [bar]: 16

d [mm]: 40

D [mm]: 75

L [mm]: 102

Winkel [°]: 90

l1 [mm]: 76

NPK-Nr.: 445.212

H [mm]: 57

l3 [mm]: 20

IG (Rp) [Zoll]: 1

Ø d [mm]: 40

Winkel [°]: 90

IG [Zoll]: 1

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d40-1"

N° d'article

158400032

l2 [mm]: 26

PN [bar]: 16

d [mm]: 40

D [mm]: 75

L [mm]: 102

Winkel [°]: 90

l1 [mm]: 76

NPK-Nr.: 445.212

H [mm]: 62

l3 [mm]: 22

IG (Rp) [Zoll]: 1 1/4

Ø d [mm]: 40

Winkel [°]: 90

IG [Zoll]: 1 1/4

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d40-11/4"

N° d'article

158400033

l2 [mm]: 26

PN [bar]: 16

d [mm]: 40

D [mm]: 75

L [mm]: 102

Winkel [°]: 90

l1 [mm]: 76

NPK-Nr.: 445.222

H [mm]: 63

l3 [mm]: 22

IG (Rp) [Zoll]: 1 1/2

Ø d [mm]: 40

Winkel [°]: 90

IG [Zoll]: 1 1/2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d40-11/2"

N° d'article

158400034

l2 [mm]: 30

PN [bar]: 16

d [mm]: 50

D [mm]: 97

L [mm]: 119

Winkel [°]: 90

l1 [mm]: 88

NPK-Nr.: 445.213

H [mm]: 61

l3 [mm]: 20

IG (Rp) [Zoll]: 1

Ø d [mm]: 50

Winkel [°]: 90

IG [Zoll]: 1

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d50-1"

N° d'article

158400035

l2 [mm]: 30

PN [bar]: 16

d [mm]: 50

D [mm]: 97

L [mm]: 119

Winkel [°]: 90

l1 [mm]: 88

NPK-Nr.: 445.223

H [mm]: 66

l3 [mm]: 22

IG (Rp) [Zoll]: 1 1/4

Ø d [mm]: 50

Winkel [°]: 90

IG [Zoll]: 1 1/4

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d50-11/4"

N° d'article

158400036

l2 [mm]: 30

PN [bar]: 16

d [mm]: 50

D [mm]: 97

L [mm]: 119

Winkel [°]: 90

l1 [mm]: 88

NPK-Nr.: 445.213

H [mm]: 70

l3 [mm]: 22

IG (Rp) [Zoll]: 1 1/2

Ø d [mm]: 50

Winkel [°]: 90

IG [Zoll]: 1 1/2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d50-11/2"

N° d'article

158400037

l2 [mm]: 30

PN [bar]: 16

d [mm]: 50

D [mm]: 97

L [mm]: 119

Winkel [°]: 90

l1 [mm]: 88

NPK-Nr.: 445.233

H [mm]: 75

l3 [mm]: 26

IG (Rp) [Zoll]: 2

Ø d [mm]: 50

Winkel [°]: 90

IG [Zoll]: 2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d50-2"

N° d'article

158400038

l2 [mm]: 35

PN [bar]: 16

d [mm]: 63

D [mm]: 114

L [mm]: 144

Winkel [°]: 90

l1 [mm]: 104

NPK-Nr.: 445.224

H [mm]: 73

l3 [mm]: 22

IG (Rp) [Zoll]: 1 1/4

Ø d [mm]: 63

Winkel [°]: 90

IG [Zoll]: 1 1/4

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d63-11/4"

N° d'article

158400039

l2 [mm]: 35

PN [bar]: 16

d [mm]: 63

D [mm]: 114

L [mm]: 144

Winkel [°]: 90

l1 [mm]: 104

NPK-Nr.: 445.224

H [mm]: 76

l3 [mm]: 22

IG (Rp) [Zoll]: 1 1/2

Ø d [mm]: 63

Winkel [°]: 90

IG [Zoll]: 1 1/2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d63-11/2"

N° d'article

158400040

l2 [mm]: 35

PN [bar]: 16

d [mm]: 63

D [mm]: 114

L [mm]: 144

Winkel [°]: 90

l1 [mm]: 104

NPK-Nr.: 445.244

H [mm]: 83

l3 [mm]: 26

IG (Rp) [Zoll]: 2

Ø d [mm]: 63

Winkel [°]: 90

IG [Zoll]: 2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d63-2"

N° d'article

158400041

l2 [mm]: 41

PN [bar]: 16

d [mm]: 75

D [mm]: 135

L [mm]: 180

Winkel [°]: 90

l1 [mm]: 133

NPK-Nr.: --

H [mm]: 91

l3 [mm]: 26

IG (Rp) [Zoll]: 2

Ø d [mm]: 75

Winkel [°]: 90

IG [Zoll]: 2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d72-2"

N° d'article

158400042

l2 [mm]: 41

PN [bar]: 16

d [mm]: 75

D [mm]: 135

L [mm]: 180

Winkel [°]: 90

l1 [mm]: 133

NPK-Nr.: 443.136

H [mm]: 101

l3 [mm]: 31

IG (Rp) [Zoll]: 2 1/2

Ø d [mm]: 75

Winkel [°]: 90

IG [Zoll]: 2 1/2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN16 d75-21/2"

N° d'article

158400043

l2 [mm]: 41

PN [bar]: 16

d [mm]: 75

D [mm]: 135

L [mm]: 180

Winkel [°]: 90

l1 [mm]: 133

NPK-Nr.: --

H [mm]: 108

l3 [mm]: 34

IG (Rp) [Zoll]: 3

Ø d [mm]: 75

Winkel [°]: 90

IG [Zoll]: 3

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN10 d75-3"

N° d'article

158400044

l2 [mm]: 44

PN [bar]: 16

d [mm]: 90

D [mm]: 161

L [mm]: 207

Winkel [°]: 90

l1 [mm]: 150

NPK-Nr.: 443.137

H [mm]: 116

l3 [mm]: 34

IG (Rp) [Zoll]: 3

Ø d [mm]: 90

Winkel [°]: 90

IG [Zoll]: 3

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN10 d90-3"

N° d'article

158400045

l2 [mm]: 53

PN [bar]: 16

d [mm]: 110

D [mm]: 185

L [mm]: 242

Winkel [°]: 90

l1 [mm]: 175

NPK-Nr.: 443.138

H [mm]: 135

l3 [mm]: 40

IG (Rp) [Zoll]: 4

Ø d [mm]: 110

Winkel [°]: 90

IG [Zoll]: 4

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° IG PN10 d110-4"

N° d'article

158400046

Übergangswinkel 90°, IG

iJOINT

Übergangswinkel 90°, IG

Übergangswinkel 90°, IG

iJOINT

Description
