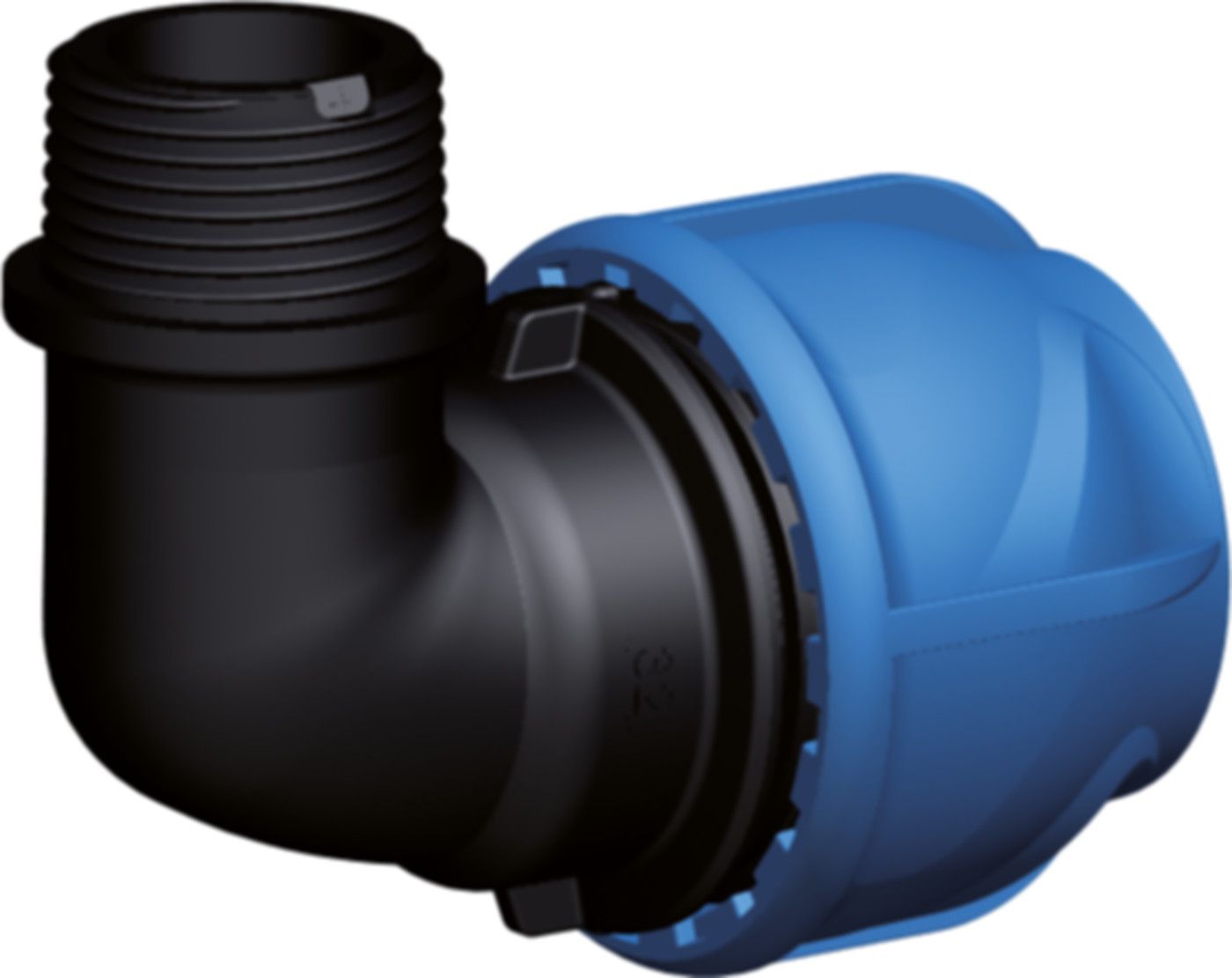

Name: Übergangswinkel 90°, AG - iJOINT
Brand: +GF+ iJOINT
SKU: IJUW90AG
Price: 8.85 CHF

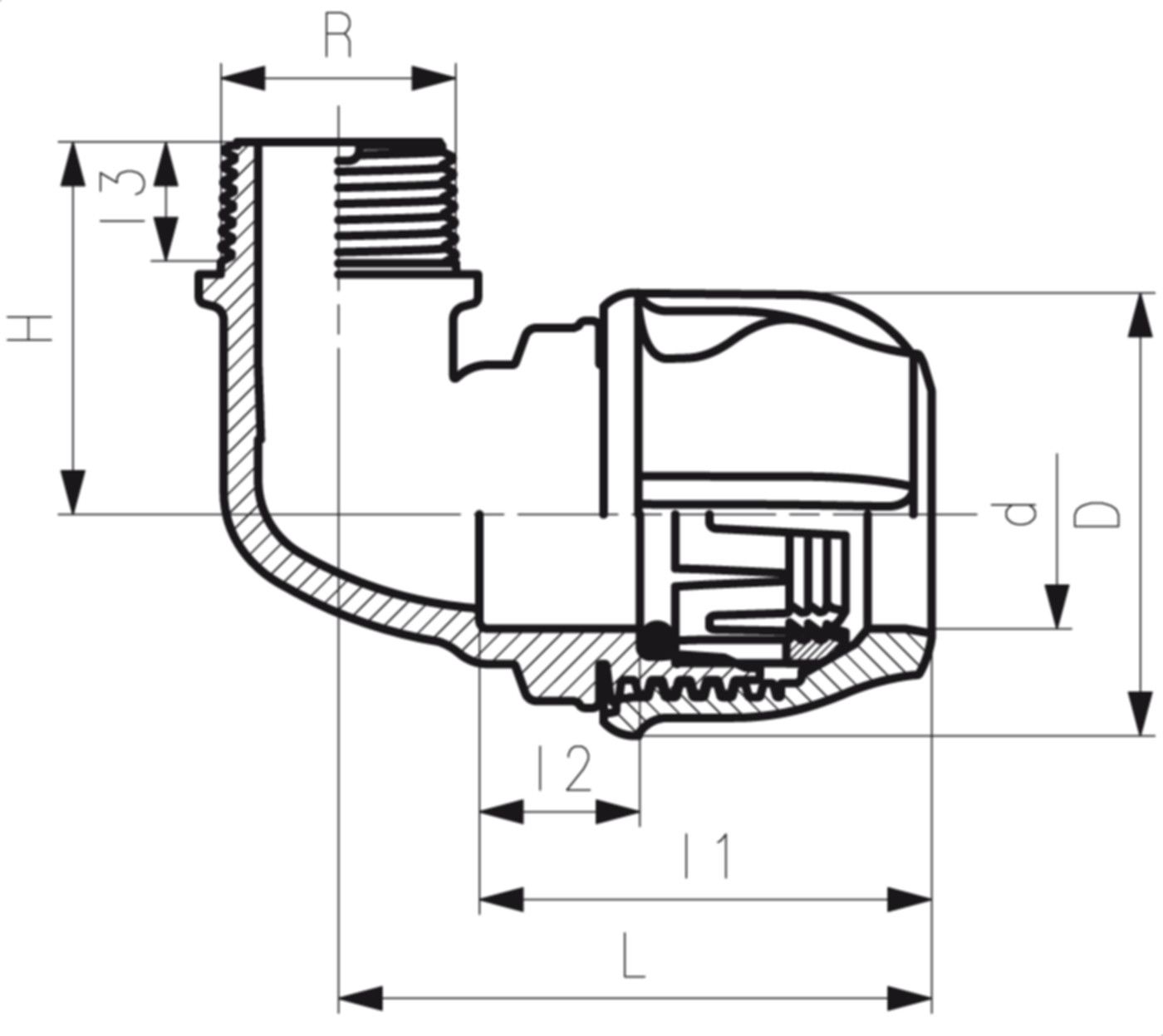

D [mm]: 45

NPK-Nr.: --

l2 [mm]: 19

l1 [mm]: 54

L [mm]: 67

d [mm]: 20

l3 [mm]: 14

R [Zoll]: 1/2

H [mm]: 41

AG (R) [Zoll]: 1/2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d20-1/2"

N° d'article

158400047

D [mm]: 45

NPK-Nr.: --

l2 [mm]: 19

l1 [mm]: 54

L [mm]: 67

d [mm]: 20

l3 [mm]: 15

R [Zoll]: 3/4

H [mm]: 42

AG (R) [Zoll]: 3/4

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d20-3/4"

N° d'article

158400048

D [mm]: 53

NPK-Nr.: --

l2 [mm]: 21

l1 [mm]: 59

L [mm]: 75

d [mm]: 25

l3 [mm]: 14

R [Zoll]: 1/2

H [mm]: 44

AG (R) [Zoll]: 1/2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d25-1/2"

N° d'article

158400049

D [mm]: 53

NPK-Nr.: --

l2 [mm]: 21

l1 [mm]: 59

L [mm]: 75

d [mm]: 25

l3 [mm]: 15

R [Zoll]: 3/4

H [mm]: 46

AG (R) [Zoll]: 3/4

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d25-3/4"

N° d'article

158400050

D [mm]: 53

NPK-Nr.: --

l2 [mm]: 21

l1 [mm]: 59

L [mm]: 75

d [mm]: 25

l3 [mm]: 17

R [Zoll]: 1

H [mm]: 48

AG (R) [Zoll]: 1

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d25-1"

N° d'article

158400051

D [mm]: 64

NPK-Nr.: --

l2 [mm]: 23

l1 [mm]: 66

L [mm]: 87

d [mm]: 32

l3 [mm]: 14

R [Zoll]: 1/2

H [mm]: 49

AG (R) [Zoll]: 1/2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d32-1/2"

N° d'article

158400052

D [mm]: 64

NPK-Nr.: --

l2 [mm]: 23

l1 [mm]: 66

L [mm]: 87

d [mm]: 32

l3 [mm]: 15

R [Zoll]: 3/4

H [mm]: 51

AG (R) [Zoll]: 3/4

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d32-3/4"

N° d'article

158400053

D [mm]: 64

NPK-Nr.: 445.111

l2 [mm]: 23

l1 [mm]: 66

L [mm]: 87

d [mm]: 32

l3 [mm]: 17

R [Zoll]: 1

H [mm]: 53

AG (R) [Zoll]: 1

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d32-1"

N° d'article

158400054

D [mm]: 75

NPK-Nr.: 445.112

l2 [mm]: 26

l1 [mm]: 76

L [mm]: 102

d [mm]: 40

l3 [mm]: 17

R [Zoll]: 1

H [mm]: 60

AG (R) [Zoll]: 1

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d40-1"

N° d'article

158400055

D [mm]: 75

NPK-Nr.: 445.112

l2 [mm]: 26

l1 [mm]: 75

L [mm]: 102

d [mm]: 40

l3 [mm]: 20

R [Zoll]: 1 1/4

H [mm]: 62

AG (R) [Zoll]: 1 1/4

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d40-11/4"

N° d'article

158400056

D [mm]: 75

NPK-Nr.: 445.122

l2 [mm]: 26

l1 [mm]: 75

L [mm]: 102

d [mm]: 40

l3 [mm]: 20

R [Zoll]: 1 1/2

H [mm]: 62

AG (R) [Zoll]: 1 1/2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d40-11/2"

N° d'article

158400057

D [mm]: 97

NPK-Nr.: 445.133

l2 [mm]: 30

l1 [mm]: 88

L [mm]: 119

d [mm]: 50

l3 [mm]: 20

R [Zoll]: 1 1/4

H [mm]: 70

AG (R) [Zoll]: 1 1/4

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d50-11/4"

N° d'article

158400058

D [mm]: 97

NPK-Nr.: 445.133

l2 [mm]: 30

l1 [mm]: 88

L [mm]: 117

d [mm]: 50

l3 [mm]: 20

R [Zoll]: 1 1/2

H [mm]: 70

AG (R) [Zoll]: 1 1/2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d50-11/2"

N° d'article

158400059

D [mm]: 114

NPK-Nr.: 445.124

l2 [mm]: 35

l1 [mm]: 104

L [mm]: 144

d [mm]: 63

l3 [mm]: 20

R [Zoll]: 1 1/4

H [mm]: 81

AG (R) [Zoll]: 1 1/4

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d63-11/4"

N° d'article

158400060

D [mm]: 114

NPK-Nr.: 445.144

l2 [mm]: 35

l1 [mm]: 104

L [mm]: 144

d [mm]: 63

l3 [mm]: 20

R [Zoll]: 1 1/2

H [mm]: 81

AG (R) [Zoll]: 1 1/2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d63-11/2"

N° d'article

158400061

D [mm]: 114

NPK-Nr.: 445.144

l2 [mm]: 35

l1 [mm]: 104

L [mm]: 144

d [mm]: 63

l3 [mm]: 24

R [Zoll]: 2

H [mm]: 85

AG (R) [Zoll]: 2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d63-2"

N° d'article

158400062

D [mm]: 114

NPK-Nr.: --

l2 [mm]: 35

l1 [mm]: 104

L [mm]: 144

d [mm]: 63

l3 [mm]: 28

R [Zoll]: 2 1/2

H [mm]: 89

AG (R) [Zoll]: 2 1/2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d63-21/2"

N° d'article

158400063

D [mm]: 135

NPK-Nr.: --

l2 [mm]: 41

l1 [mm]: 133

L [mm]: 180

d [mm]: 75

l3 [mm]: 28

R [Zoll]: 2 1/2

H [mm]: 101

AG (R) [Zoll]: 2 1/2

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d75-21/2"

N° d'article

158400064

D [mm]: 161

NPK-Nr.: --

l2 [mm]: 44

l1 [mm]: 150

L [mm]: 207

d [mm]: 90

l3 [mm]: 30

R [Zoll]: 3

H [mm]: 116

AG (R) [Zoll]: 3

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d90-3"

N° d'article

158400066

D [mm]: 161

NPK-Nr.: --

l2 [mm]: 44

l1 [mm]: 150

L [mm]: 207

d [mm]: 90

l3 [mm]: 36

R [Zoll]: 4

H [mm]: 122

AG (R) [Zoll]: 4

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d90-4"

N° d'article

158400067

D [mm]: 185

NPK-Nr.: --

l2 [mm]: 53

l1 [mm]: 175

L [mm]: 242

d [mm]: 110

l3 [mm]: 30

R [Zoll]: 3

H [mm]: 131

AG (R) [Zoll]: 3

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d110-3"

N° d'article

158400068

D [mm]: 185

NPK-Nr.: --

l2 [mm]: 53

l1 [mm]: 175

L [mm]: 242

d [mm]: 110

l3 [mm]: 36

R [Zoll]: 4

H [mm]: 138

AG (R) [Zoll]: 4

+GF+ iJoint Klemmverbinder PP NBR Übergangswinkel 90° AG PN16 d110-4"

N° d'article

158400069
