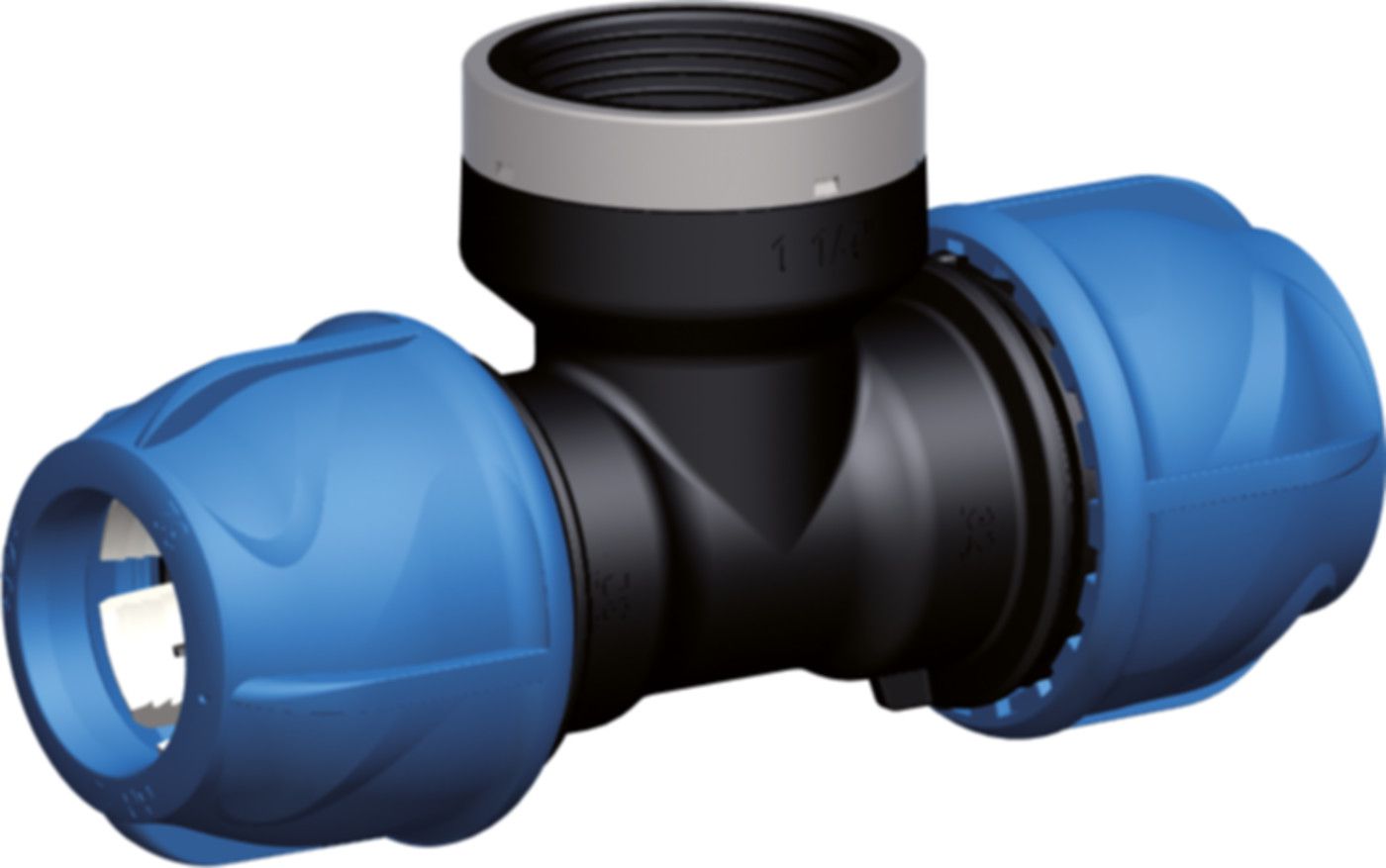

Name: Übergangs-T-90°, IG - iJOINT
Brand: +GF+ iJOINT
SKU: IJUT90IG
Price: 18.27 CHF

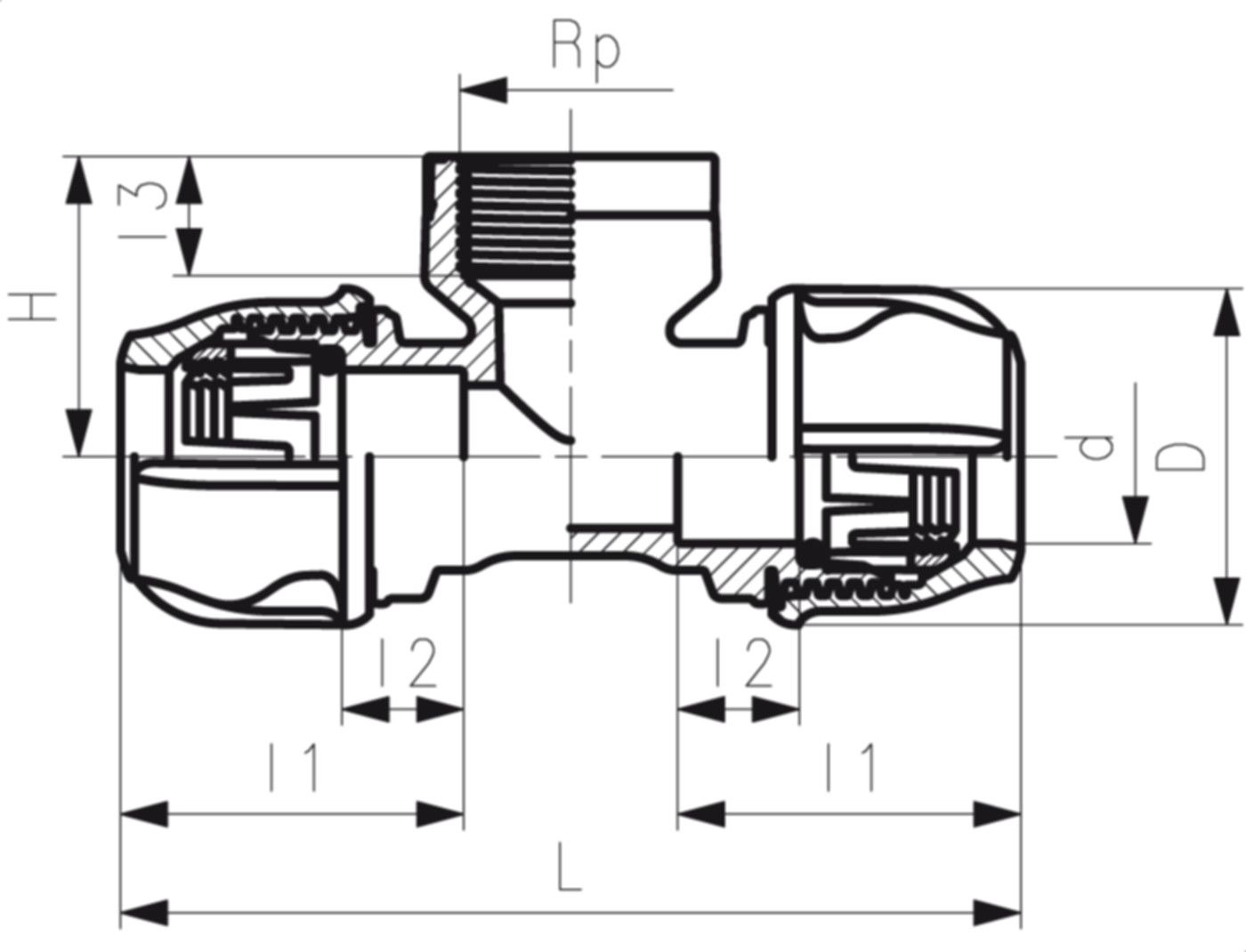

D [mm]: 45

NPK-Nr.: --

l2 [mm]: 19

l1 [mm]: 54

L [mm]: 134

d [mm]: 20

l3 [mm]: 15

H [mm]: 40

Rp [Zoll]: 1/2

IG (Rp) [Zoll]: 1/2

H [mm]: 40

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d20-1/2""-20"

N° d'article

158400177

D [mm]: 45

NPK-Nr.: 432.152

l2 [mm]: 19

l1 [mm]: 54

L [mm]: 134

d [mm]: 20

l3 [mm]: 16

H [mm]: 41

Rp [Zoll]: 3/4

IG (Rp) [Zoll]: 3/4

H [mm]: 41

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d20-3/4""-20"

N° d'article

158400178

D [mm]: 53

NPK-Nr.: --

l2 [mm]: 21

l1 [mm]: 59

L [mm]: 150

d [mm]: 25

l3 [mm]: 15

H [mm]: 40

Rp [Zoll]: 1/2

IG (Rp) [Zoll]: 1/2

H [mm]: 40

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d25-1/2""-25"

N° d'article

158400179

D [mm]: 53

NPK-Nr.: --

l2 [mm]: 21

l1 [mm]: 59

L [mm]: 150

d [mm]: 25

l3 [mm]: 16

H [mm]: 44

Rp [Zoll]: 3/4

IG (Rp) [Zoll]: 3/4

H [mm]: 44

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d25-3/4""-25"

N° d'article

158400180

D [mm]: 53

NPK-Nr.: 432.153

l2 [mm]: 21

l1 [mm]: 59

L [mm]: 150

d [mm]: 25

l3 [mm]: 20

H [mm]: 49

Rp [Zoll]: 1

IG (Rp) [Zoll]: 1

H [mm]: 49

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d25-1""-25"

N° d'article

158400181

D [mm]: 64

NPK-Nr.: --

l2 [mm]: 23

l1 [mm]: 66

L [mm]: 173

d [mm]: 32

l3 [mm]: 15

H [mm]: 42

Rp [Zoll]: 1/2

IG (Rp) [Zoll]: 1/2

H [mm]: 42

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d32-1/2""-32"

N° d'article

158400182

D [mm]: 64

NPK-Nr.: --

l2 [mm]: 23

l1 [mm]: 66

L [mm]: 173

d [mm]: 32

l3 [mm]: 16

H [mm]: 46

Rp [Zoll]: 3/4

IG (Rp) [Zoll]: 3/4

H [mm]: 46

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d32-3/4""-32"

N° d'article

158400183

D [mm]: 64

NPK-Nr.: 442.511

l2 [mm]: 23

l1 [mm]: 66

L [mm]: 173

d [mm]: 32

l3 [mm]: 20

H [mm]: 54

Rp [Zoll]: 1

IG (Rp) [Zoll]: 1

H [mm]: 54

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d32-1""-32"

N° d'article

158400184

D [mm]: 64

NPK-Nr.: 442.521

l2 [mm]: 23

l1 [mm]: 66

L [mm]: 173

d [mm]: 32

l3 [mm]: 22

H [mm]: 57

Rp [Zoll]: 1 1/4

IG (Rp) [Zoll]: 1 1/4

H [mm]: 57

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d32-11/4""-32"

N° d'article

158400185

D [mm]: 75

NPK-Nr.: --

l2 [mm]: 26

l1 [mm]: 76

L [mm]: 203

d [mm]: 40

l3 [mm]: 16

H [mm]: 49

Rp [Zoll]: 3/4

IG (Rp) [Zoll]: 3/4

H [mm]: 49

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d40-3/4""-40"

N° d'article

158400186

D [mm]: 75

NPK-Nr.: 442.512

l2 [mm]: 26

l1 [mm]: 76

L [mm]: 203

d [mm]: 40

l3 [mm]: 20

H [mm]: 57

Rp [Zoll]: 1

IG (Rp) [Zoll]: 1

H [mm]: 57

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d40-1""-40"

N° d'article

158400187

D [mm]: 75

NPK-Nr.: 442.522

l2 [mm]: 26

l1 [mm]: 76

L [mm]: 203

d [mm]: 40

l3 [mm]: 22

H [mm]: 62

Rp [Zoll]: 1 1/4

IG (Rp) [Zoll]: 1 1/4

H [mm]: 62

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d40-11/4""-40"

N° d'article

158400188

D [mm]: 75

NPK-Nr.: 442.533

l2 [mm]: 26

l1 [mm]: 76

L [mm]: 206

d [mm]: 40

l3 [mm]: 22

H [mm]: 63

Rp [Zoll]: 1 1/2

IG (Rp) [Zoll]: 1 1/2

H [mm]: 63

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d40-11/2""-40"

N° d'article

158400189

D [mm]: 97

NPK-Nr.: 442.513

l2 [mm]: 30

l1 [mm]: 88

L [mm]: 239

d [mm]: 50

l3 [mm]: 20

H [mm]: 61

Rp [Zoll]: 1

IG (Rp) [Zoll]: 1

H [mm]: 61

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d50-1""-50"

N° d'article

158400190

D [mm]: 97

NPK-Nr.: 442.523

l2 [mm]: 30

l1 [mm]: 88

L [mm]: 239

d [mm]: 50

l3 [mm]: 22

H [mm]: 66

Rp [Zoll]: 1 1/4

IG (Rp) [Zoll]: 1 1/4

H [mm]: 66

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d50-11/4""-50"

N° d'article

158400191

D [mm]: 97

NPK-Nr.: 442.533

l2 [mm]: 30

l1 [mm]: 88

L [mm]: 171

d [mm]: 50

l3 [mm]: 22

H [mm]: 70

Rp [Zoll]: 1 1/2

IG (Rp) [Zoll]: 1 1/2

H [mm]: 70

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d50-11/2""-50"

N° d'article

158400192

D [mm]: 97

NPK-Nr.: 442.543

l2 [mm]: 30

l1 [mm]: 88

L [mm]: 239

d [mm]: 50

l3 [mm]: 26

H [mm]: 75

Rp [Zoll]: 2

IG (Rp) [Zoll]: 2

H [mm]: 75

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d50-2""-50"

N° d'article

158400193

D [mm]: 114

NPK-Nr.: 442.524

l2 [mm]: 35

l1 [mm]: 104

L [mm]: 288

d [mm]: 63

l3 [mm]: 22

H [mm]: 73

Rp [Zoll]: 1 1/4

IG (Rp) [Zoll]: 1 1/4

H [mm]: 73

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d63-11/4""-63"

N° d'article

158400194

D [mm]: 114

NPK-Nr.: 442.534

l2 [mm]: 35

l1 [mm]: 104

L [mm]: 288

d [mm]: 63

l3 [mm]: 22

H [mm]: 76

Rp [Zoll]: 1 1/2

IG (Rp) [Zoll]: 1 1/2

H [mm]: 76

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d63-11/2""-63"

N° d'article

158400195

D [mm]: 114

NPK-Nr.: 442.544

l2 [mm]: 35

l1 [mm]: 104

L [mm]: 207

d [mm]: 63

l3 [mm]: 26

H [mm]: 83

Rp [Zoll]: 2

IG (Rp) [Zoll]: 2

H [mm]: 83

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d63-2""-63"

N° d'article

158400196

D [mm]: 135

NPK-Nr.: 443.346

l2 [mm]: 41

l1 [mm]: 133

L [mm]: 360

d [mm]: 75

l3 [mm]: 31

H [mm]: 101

Rp [Zoll]: 2 1/2

IG (Rp) [Zoll]: 2 1/2

H [mm]: 101

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN16 d75-21/2""-75"

N° d'article

158400197

D [mm]: 161

NPK-Nr.: 443.337

l2 [mm]: 44

l1 [mm]: 150

L [mm]: 413

d [mm]: 90

l3 [mm]: 34

H [mm]: 116

Rp [Zoll]: 3

IG (Rp) [Zoll]: 3

H [mm]: 116

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN10 d90-3""-90"

N° d'article

158400198

D [mm]: 185

NPK-Nr.: 443.338

l2 [mm]: 53

l1 [mm]: 175

L [mm]: 484

d [mm]: 110

l3 [mm]: 40

H [mm]: 135

Rp [Zoll]: 4

IG (Rp) [Zoll]: 4

H [mm]: 135

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit IG PN10 d110-4""-110"

N° d'article

158400199
