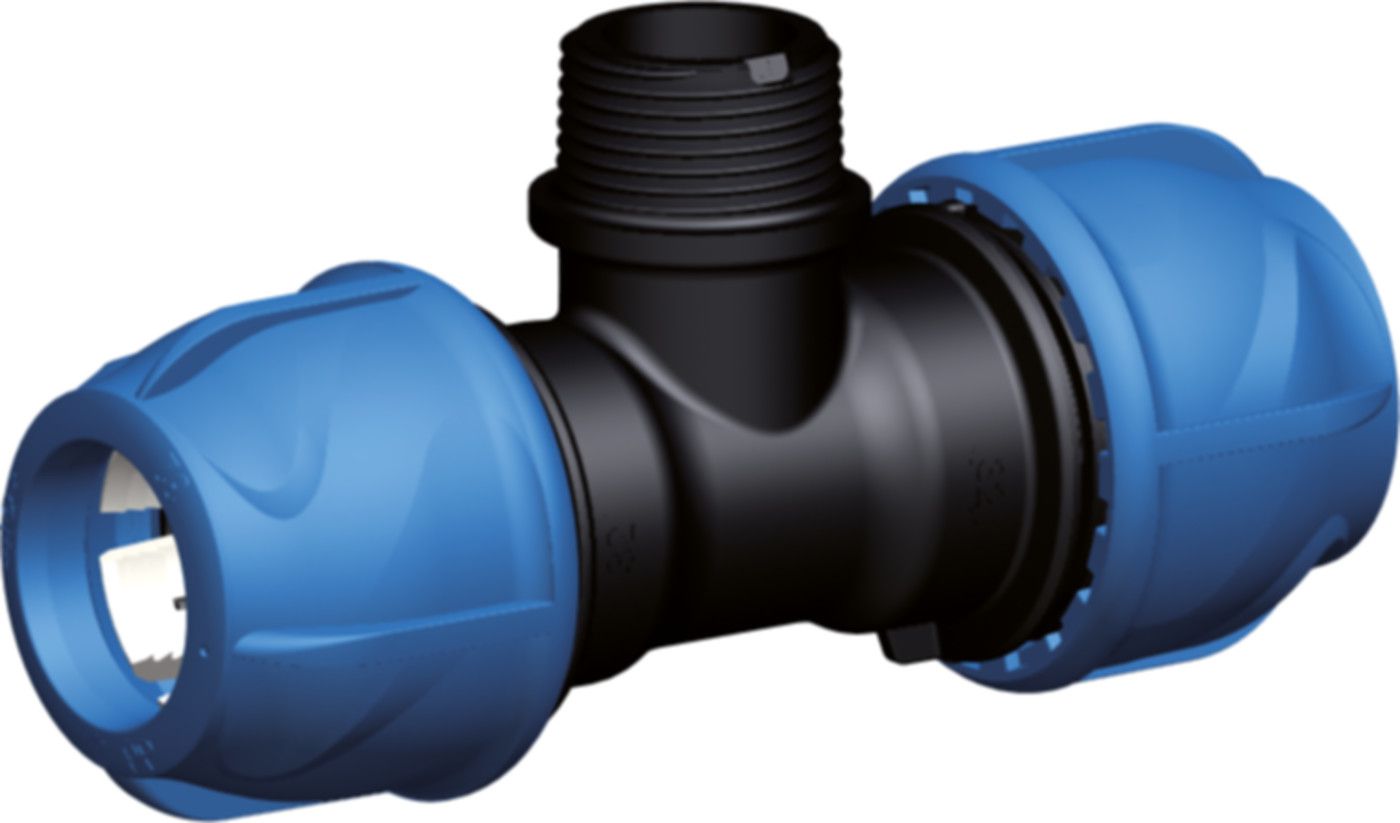

Name: Übergangs-T-90°, AG - iJOINT
Brand: +GF+ iJOINT
SKU: IJUT90AG
Price: 17 CHF

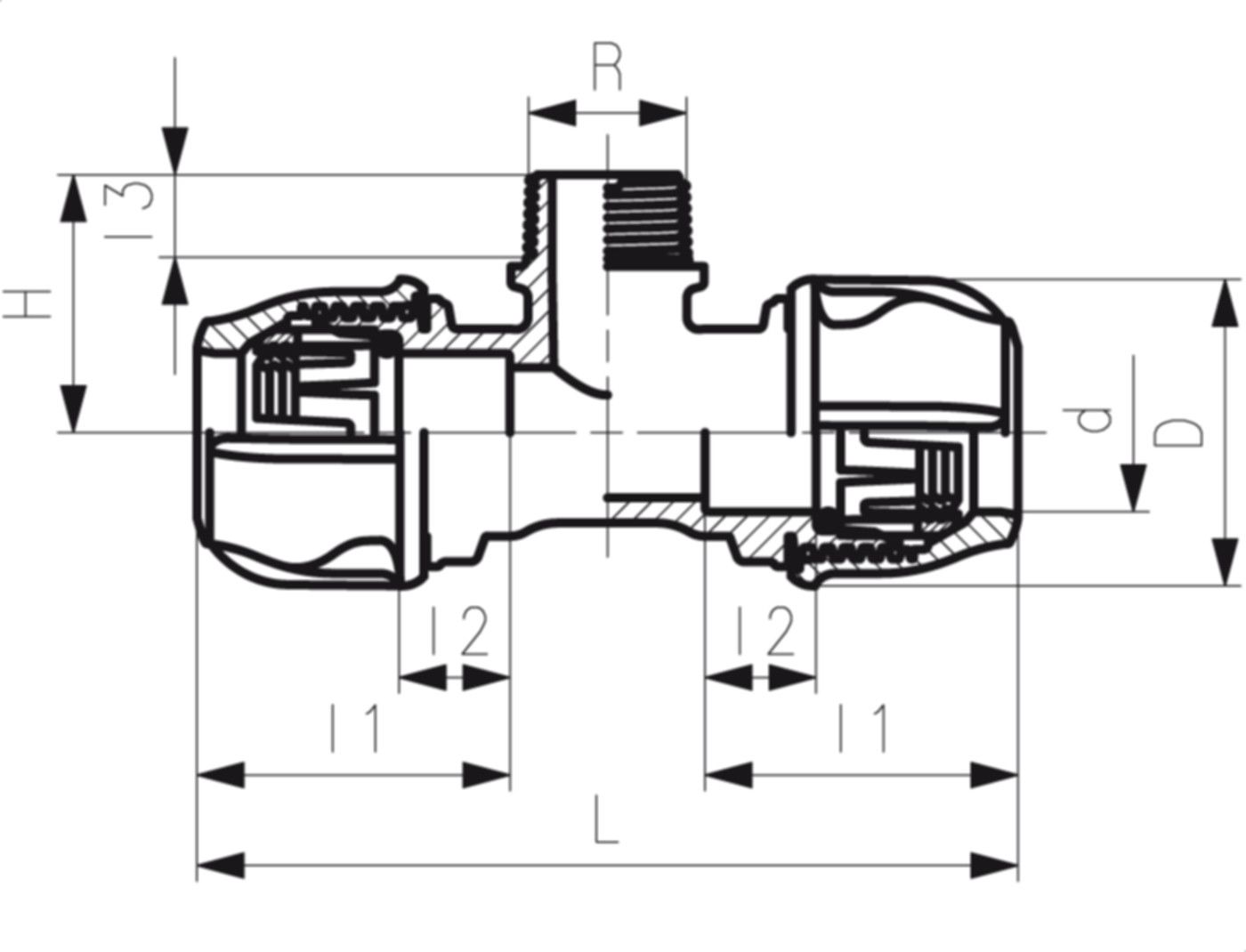

D [mm]: 45

NPK-Nr.: --

l2 [mm]: 19

l1 [mm]: 54

L [mm]: 134

d [mm]: 20

l3 [mm]: 14

R [Zoll]: 1/2

H [mm]: 41

AG (R) [Zoll]: 1/2

H [mm]: 41

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d20-1/2""-20"

N° d'article

158400202

D [mm]: 45

NPK-Nr.: 432.162

l2 [mm]: 19

l1 [mm]: 54

L [mm]: 134

d [mm]: 20

l3 [mm]: 15

R [Zoll]: 3/4

H [mm]: 42

AG (R) [Zoll]: 3/4

H [mm]: 42

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d20-3/4""-20"

N° d'article

158400203

D [mm]: 53

NPK-Nr.: --

l2 [mm]: 21

l1 [mm]: 59

L [mm]: 150

d [mm]: 25

l3 [mm]: 14

R [Zoll]: 1/2

H [mm]: 44

AG (R) [Zoll]: 1/2

H [mm]: 44

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d25-1/2""-25"

N° d'article

158400204

D [mm]: 53

NPK-Nr.: --

l2 [mm]: 21

l1 [mm]: 59

L [mm]: 150

d [mm]: 25

l3 [mm]: 15

R [Zoll]: 3/4

H [mm]: 46

AG (R) [Zoll]: 3/4

H [mm]: 46

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d25-3/4""-25"

N° d'article

158400205

D [mm]: 53

NPK-Nr.: 432.163

l2 [mm]: 21

l1 [mm]: 59

L [mm]: 150

d [mm]: 25

l3 [mm]: 17

R [Zoll]: 1

H [mm]: 48

AG (R) [Zoll]: 1

H [mm]: 48

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d25-1""-25"

N° d'article

158400206

D [mm]: 64

NPK-Nr.: --

l2 [mm]: 23

l1 [mm]: 66

L [mm]: 173

d [mm]: 32

l3 [mm]: 15

R [Zoll]: 3/4

H [mm]: 51

AG (R) [Zoll]: 3/4

H [mm]: 51

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d32-3/4""-32"

N° d'article

158400207

D [mm]: 64

NPK-Nr.: 432.164

l2 [mm]: 21

l1 [mm]: 66

L [mm]: 173

d [mm]: 32

l3 [mm]: 17

R [Zoll]: 1

H [mm]: 53

AG (R) [Zoll]: 1

H [mm]: 53

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d32-1""-32"

N° d'article

158400208

D [mm]: 75

NPK-Nr.: --

l2 [mm]: 26

l1 [mm]: 76

L [mm]: 203

d [mm]: 40

l3 [mm]: 15

R [Zoll]: 3/4

H [mm]: 57

AG (R) [Zoll]: 3/4

H [mm]: 57

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d40-3/4""-40"

N° d'article

158400209

D [mm]: 75

NPK-Nr.: 442.562

l2 [mm]: 26

l1 [mm]: 76

L [mm]: 203

d [mm]: 40

l3 [mm]: 20

R [Zoll]: 1 1/4

H [mm]: 62

AG (R) [Zoll]: 1 1/4

H [mm]: 62

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d40-11/4""-40"

N° d'article

158400210

D [mm]: 75

NPK-Nr.: 432.165

l2 [mm]: 26

l1 [mm]: 76

L [mm]: 203

d [mm]: 40

l3 [mm]: 20

R [Zoll]: 1 1/2

H [mm]: 62

AG (R) [Zoll]: 1 1/2

H [mm]: 62

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d40-11/2""-40"

N° d'article

158400211

D [mm]: 97

NPK-Nr.: --

l2 [mm]: 30

l1 [mm]: 88

L [mm]: 239

d [mm]: 50

l3 [mm]: 15

R [Zoll]: 3/4

H [mm]: 65

AG (R) [Zoll]: 3/4

H [mm]: 65

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d50-3/4""-50"

N° d'article

158400212

D [mm]: 97

NPK-Nr.: 442.563

l2 [mm]: 30

l1 [mm]: 88

L [mm]: 239

d [mm]: 50

l3 [mm]: 20

R [Zoll]: 1 1/4

H [mm]: 70

AG (R) [Zoll]: 1 1/4

H [mm]: 70

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d50-11/4""-50"

N° d'article

158400213

D [mm]: 97

NPK-Nr.: 432.166

l2 [mm]: 30

l1 [mm]: 88

L [mm]: 239

d [mm]: 50

l3 [mm]: 20

R [Zoll]: 1 1/2

H [mm]: 70

AG (R) [Zoll]: 1 1/2

H [mm]: 70

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d50-11/2""-50"

N° d'article

158400214

D [mm]: 114

NPK-Nr.: 442.564

l2 [mm]: 35

l1 [mm]: 104

L [mm]: 288

d [mm]: 63

l3 [mm]: 20

R [Zoll]: 1 1/4

H [mm]: 81

AG (R) [Zoll]: 1 1/4

H [mm]: 81

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d63-11/4""-63"

N° d'article

158400215

D [mm]: 114

NPK-Nr.: 442.574

l2 [mm]: 35

l1 [mm]: 104

L [mm]: 288

d [mm]: 63

l3 [mm]: 20

R [Zoll]: 1 1/2

H [mm]: 81

AG (R) [Zoll]: 1 1/2

H [mm]: 81

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d63-11/2""-63"

N° d'article

158400216

D [mm]: 114

NPK-Nr.: 442.584

l2 [mm]: 35

l1 [mm]: 104

L [mm]: 288

d [mm]: 63

l3 [mm]: 24

R [Zoll]: 2

H [mm]: 85

AG (R) [Zoll]: 2

H [mm]: 85

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d63-2""-63"

N° d'article

158400217

D [mm]: 114

NPK-Nr.: 432.167

l2 [mm]: 35

l1 [mm]: 104

L [mm]: 288

d [mm]: 63

l3 [mm]: 28

R [Zoll]: 2 1/2

H [mm]: 89

AG (R) [Zoll]: 2 1/2

H [mm]: 89

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d63-21/2""-63"

N° d'article

158400218

D [mm]: 135

NPK-Nr.: --

l2 [mm]: 41

l1 [mm]: 133

L [mm]: 360

d [mm]: 75

l3 [mm]: 28

R [Zoll]: 2 1/2

H [mm]: 101

AG (R) [Zoll]: 2 1/2

H [mm]: 101

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d75-21/2""-75"

N° d'article

158400219

D [mm]: 135

NPK-Nr.: --

l2 [mm]: 41

l1 [mm]: 133

L [mm]: 360

d [mm]: 75

l3 [mm]: 30

R [Zoll]: 3

H [mm]: 104

AG (R) [Zoll]: 3

H [mm]: 104

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d75-3""-75"

N° d'article

158400220

D [mm]: 161

NPK-Nr.: --

l2 [mm]: 44

l1 [mm]: 150

L [mm]: 413

d [mm]: 90

l3 [mm]: 30

R [Zoll]: 3

H [mm]: 116

AG (R) [Zoll]: 3

H [mm]: 116

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d90-3""-90"

N° d'article

158400221

D [mm]: 185

NPK-Nr.: --

l2 [mm]: 53

l1 [mm]: 175

L [mm]: 484

d [mm]: 110

l3 [mm]: 36

R [Zoll]: 4

H [mm]: 138

AG (R) [Zoll]: 4

H [mm]: 138

+GF+ iJoint Klemmverbinder PP NBR T - 90° mit AG PN16 d110-4""-1110"

N° d'article

158400222
