Egger + Co. AG
Connexion

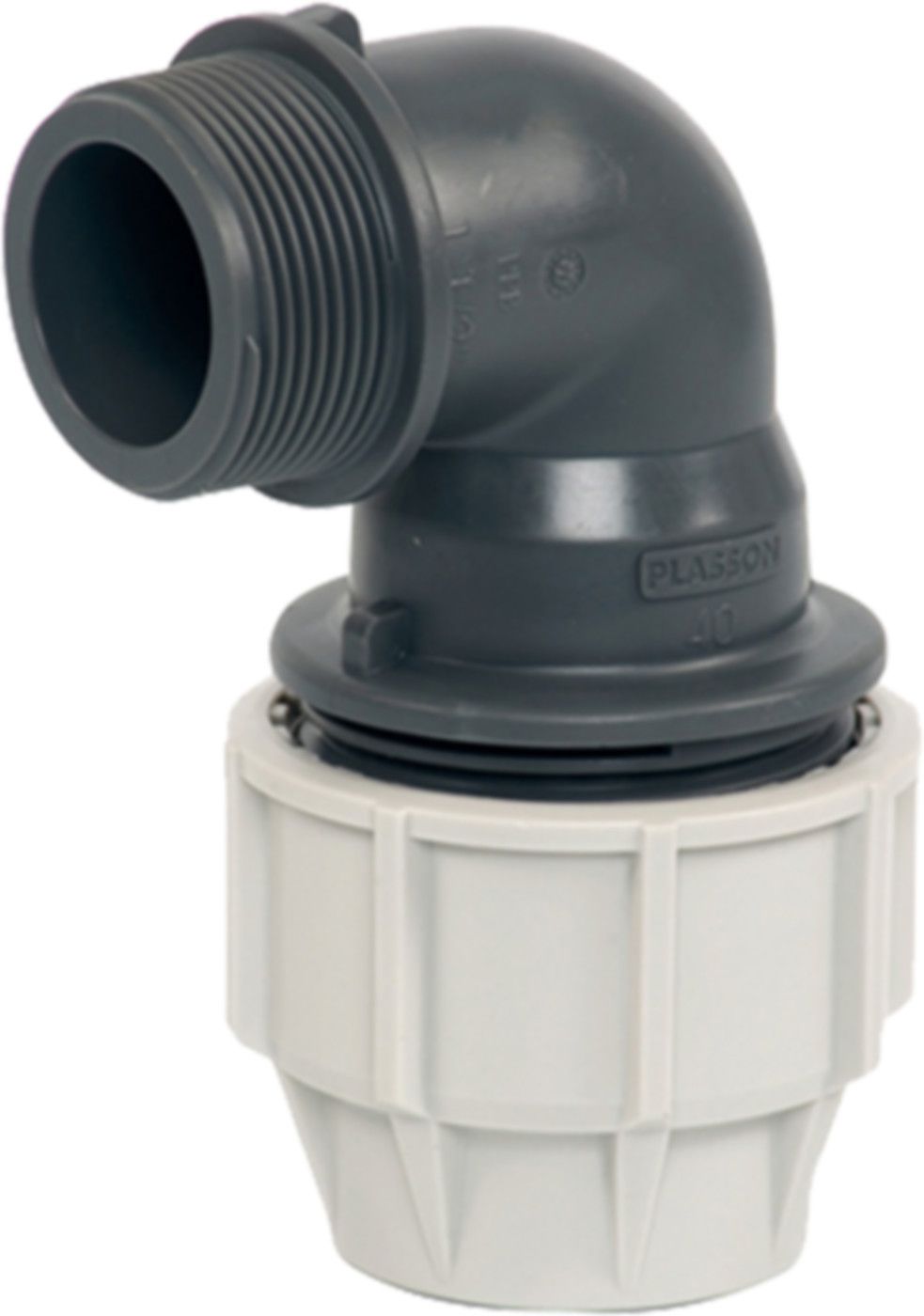

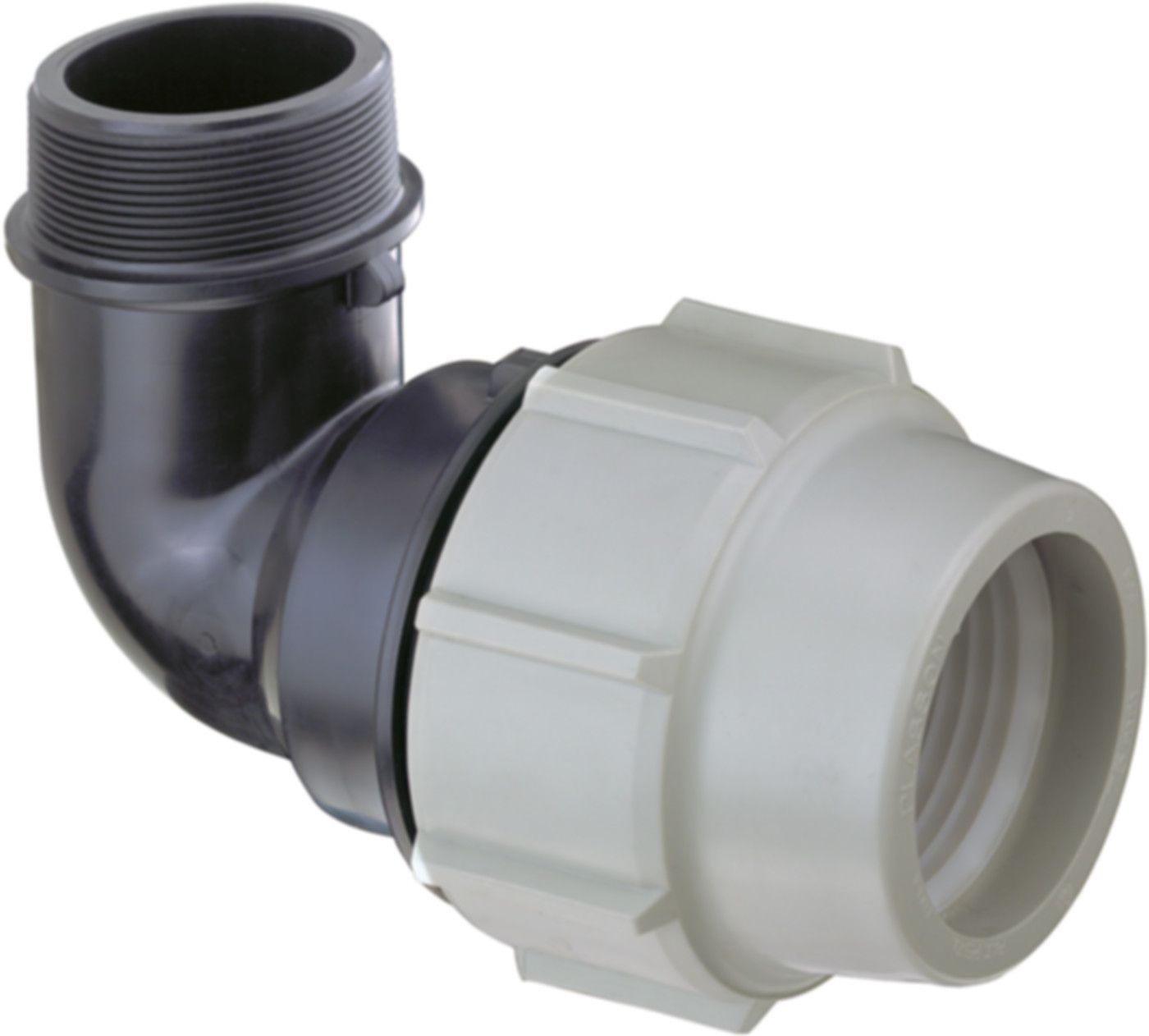

Plasson Winkelanschlussverschr. 90°, AG
Typ 7850

Toutes les variantes
N° d'articlePO7850
Plasson
6 de 6
Fanions

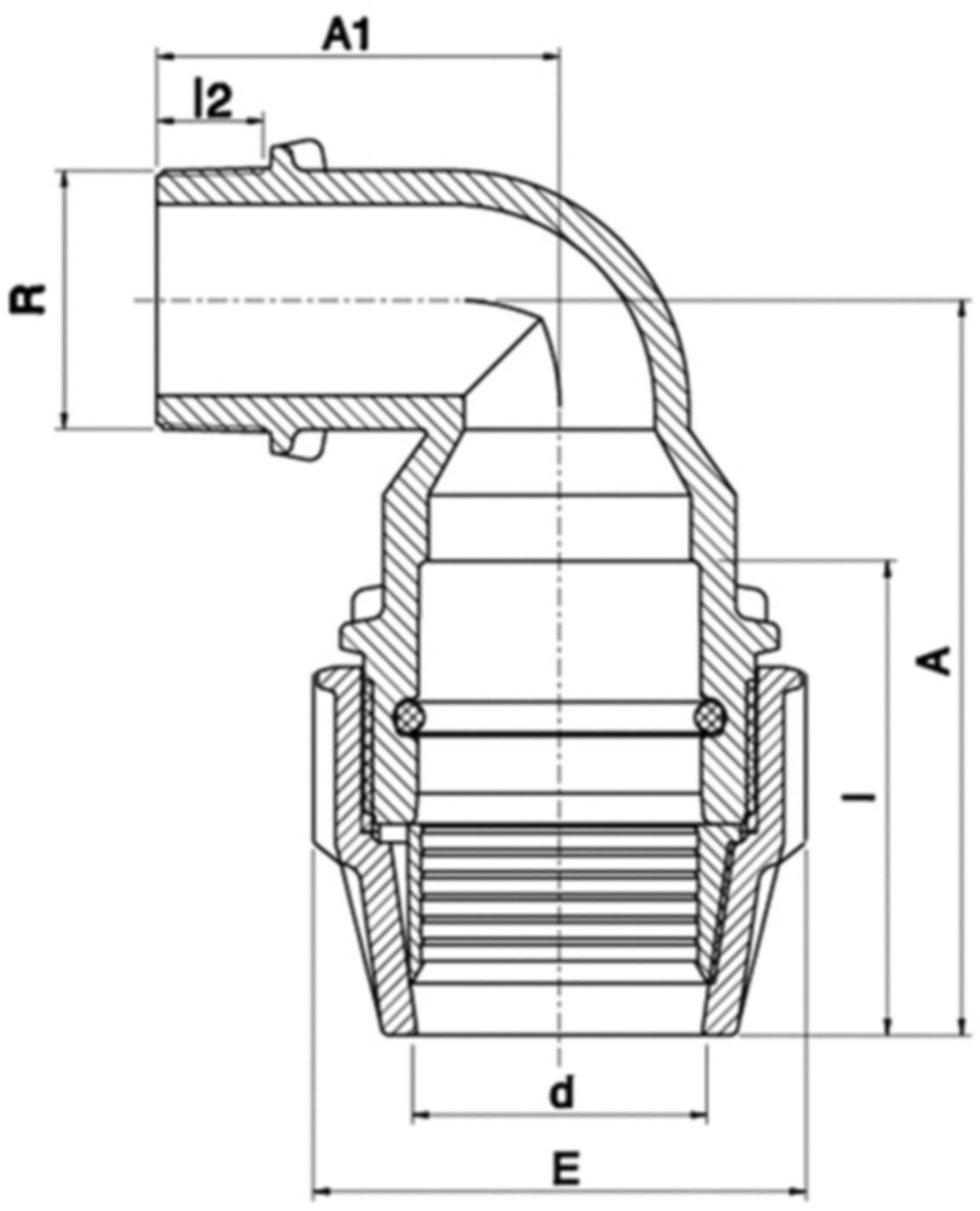

A [mm]
l [mm]
d [mm]
E [mm]
l2 [mm]
AG [Zoll]
A1 [mm]
d [mm]
Ø d [mm]
Trouvé: 6
A [mm]: 74
l [mm]: 57
d [mm]: 20
E [mm]: 48
Winkel [°]: 90
Typ: 7850
l2 [mm]: 17
AG [Zoll]: 1/2
A1 [mm]: 41
IG [Zoll]: ---
d [mm]: 20
H [mm]: ---
d1 [mm]: ---
l1 [mm]: ---
E1 [mm]: ---
Ø d [mm]: 20
Winkel [°]: 90
Ø d1 [mm]: ---
Plasson-Winkel Nr. 7850 20x1/2" AG

A [mm]: 74
l [mm]: 57
d [mm]: 20
E [mm]: 48
Winkel [°]: 90
Typ: 7850
l2 [mm]: 17
AG [Zoll]: 1/2
A1 [mm]: 41
IG [Zoll]: ---
d [mm]: 20
H [mm]: ---
d1 [mm]: ---
l1 [mm]: ---
E1 [mm]: ---
Ø d [mm]: 20
Winkel [°]: 90
Ø d1 [mm]: ---
N° d'article PO7850.203
...

A [mm]: 89
l [mm]: 58
d [mm]: 25
E [mm]: 54
Winkel [°]: 90
Typ: 7850
l2 [mm]: 18
AG [Zoll]: 3/4
A1 [mm]: 48
IG [Zoll]: ---
d [mm]: 25
H [mm]: ---
d1 [mm]: ---
l1 [mm]: ---
E1 [mm]: ---
Ø d [mm]: 25
Winkel [°]: 90
Ø d1 [mm]: ---
Plasson-Winkel Nr. 7850 25x3/4" AG

A [mm]: 89
l [mm]: 58
d [mm]: 25
E [mm]: 54
Winkel [°]: 90
Typ: 7850
l2 [mm]: 18
AG [Zoll]: 3/4
A1 [mm]: 48
IG [Zoll]: ---
d [mm]: 25
H [mm]: ---
d1 [mm]: ---
l1 [mm]: ---
E1 [mm]: ---
Ø d [mm]: 25
Winkel [°]: 90
Ø d1 [mm]: ---
N° d'article PO7850.254
...

A [mm]: 103
l [mm]: 67
d [mm]: 32
E [mm]: 64
Winkel [°]: 90
Typ: 7850
l2 [mm]: 20
AG [Zoll]: 1
A1 [mm]: 55
IG [Zoll]: ---
d [mm]: 32
H [mm]: ---
d1 [mm]: ---
l1 [mm]: ---
E1 [mm]: ---
Ø d [mm]: 32
Winkel [°]: 90
Ø d1 [mm]: ---
Plasson-Winkel Nr. 7850 32x1" AG

A [mm]: 103
l [mm]: 67
d [mm]: 32
E [mm]: 64
Winkel [°]: 90
Typ: 7850
l2 [mm]: 20
AG [Zoll]: 1
A1 [mm]: 55
IG [Zoll]: ---
d [mm]: 32
H [mm]: ---
d1 [mm]: ---
l1 [mm]: ---
E1 [mm]: ---
Ø d [mm]: 32
Winkel [°]: 90
Ø d1 [mm]: ---
N° d'article PO7850.325
...

A [mm]: 123
l [mm]: 83
d [mm]: 40
E [mm]: 82
Winkel [°]: 90
Typ: 7850
l2 [mm]: 22
AG [Zoll]: 1 1/4
A1 [mm]: 66
IG [Zoll]: ---
d [mm]: 40
H [mm]: ---
d1 [mm]: ---
l1 [mm]: ---
E1 [mm]: ---
Ø d [mm]: 40
Winkel [°]: 90
Ø d1 [mm]: ---
Plasson-Winkel Nr. 7850 40x11/4" AG

A [mm]: 123
l [mm]: 83
d [mm]: 40
E [mm]: 82
Winkel [°]: 90
Typ: 7850
l2 [mm]: 22
AG [Zoll]: 1 1/4
A1 [mm]: 66
IG [Zoll]: ---
d [mm]: 40
H [mm]: ---
d1 [mm]: ---
l1 [mm]: ---
E1 [mm]: ---
Ø d [mm]: 40
Winkel [°]: 90
Ø d1 [mm]: ---
N° d'article PO7850.406
...

A [mm]: 123
l [mm]: 83
d [mm]: 40
E [mm]: 82
Winkel [°]: 90
Typ: 7850
l2 [mm]: 22
AG [Zoll]: 1 1/2
A1 [mm]: 66
IG [Zoll]: ---
d [mm]: 40
H [mm]: ---
d1 [mm]: ---
l1 [mm]: ---
E1 [mm]: ---
Ø d [mm]: 40
Winkel [°]: 90
Ø d1 [mm]: ---
Plasson-Winkel Nr. 7850 50x11/4" AG

A [mm]: 123
l [mm]: 83
d [mm]: 40
E [mm]: 82
Winkel [°]: 90
Typ: 7850
l2 [mm]: 22
AG [Zoll]: 1 1/2
A1 [mm]: 66
IG [Zoll]: ---
d [mm]: 40
H [mm]: ---
d1 [mm]: ---
l1 [mm]: ---
E1 [mm]: ---
Ø d [mm]: 40
Winkel [°]: 90
Ø d1 [mm]: ---
N° d'article PO7850.506
...

A [mm]: 144
l [mm]: 94
d [mm]: 50
E [mm]: 96
Winkel [°]: 90
Typ: 7850
l2 [mm]: 22
AG [Zoll]: 1 1/2
A1 [mm]: 74
IG [Zoll]: ---
d [mm]: 50
H [mm]: ---
d1 [mm]: ---
l1 [mm]: ---
E1 [mm]: ---
Ø d [mm]: 50
Winkel [°]: 90
Ø d1 [mm]: ---
Plasson-Winkel Nr. 7850 50x11/2" AG

A [mm]: 144
l [mm]: 94
d [mm]: 50
E [mm]: 96
Winkel [°]: 90
Typ: 7850
l2 [mm]: 22
AG [Zoll]: 1 1/2
A1 [mm]: 74
IG [Zoll]: ---
d [mm]: 50
H [mm]: ---
d1 [mm]: ---
l1 [mm]: ---
E1 [mm]: ---
Ø d [mm]: 50
Winkel [°]: 90
Ø d1 [mm]: ---
N° d'article PO7850.507
...


Description

- Mit Aussengewinde
